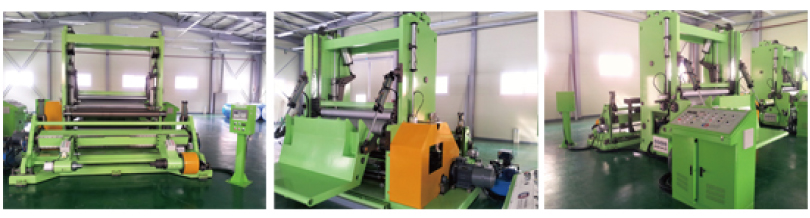

▣ SLITTER REWINDER

본문

상품설명
상품사양



 Classification  Specification
Structure

Components

 SLITTER TYPE  2ROLL SURFACE WINDING SYSTEM
 KIND OF WEB  PAPER 32g ~ 150g
 WEB WIDTH
 MAX 1650mm
 ROLLER WIDTH  1800mm
 SLITTING WIDTH  MIN 210mm
 WORKING SPEED  10 ~ 80 m/min
 DRIVING MOTOR SYSTEM  A.C VECTOR MOTOR
 UNWINDING DIAMETER  MAX Φ1300mm
 REWINDING DIAMETER  MAX Φ1500mm
 SLITTING SYSTEM  RING KNIFE SHEAR CUTTING SYSTEM
 MACHINE SPEED
 MAX 450m/min
 MAIN DRIVING MOTOR
 A.C VECTOR MOTOR
